Product DescriptionCompany Info.
- Principle:
- Vacuum filtration
- Style:
- Vertical type
- Applicable object:
- Lubricating oil
- Model:

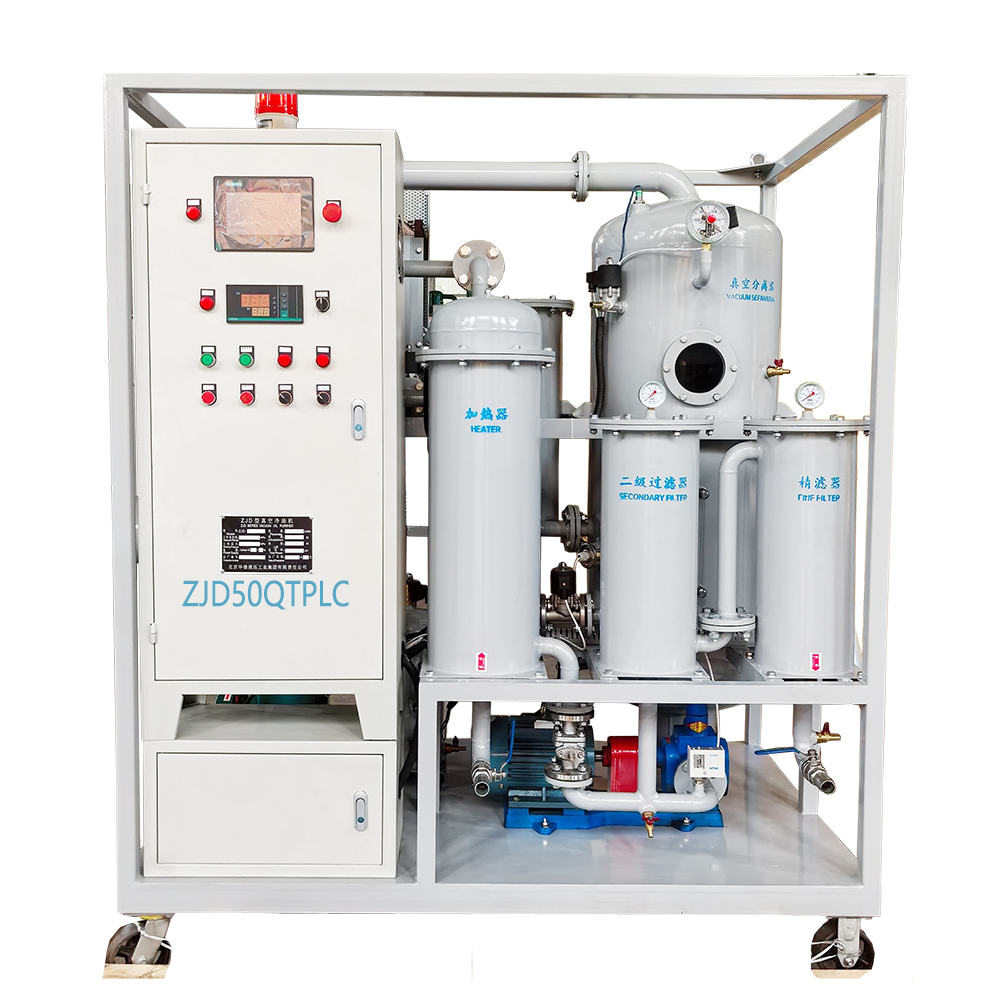

- ZJD50QTPLC
- Filter type:
- Fibre
- Performance:
- High efficiency filtration
- Rated flow:
- 3 m3/h
- Working pressure:
- 0.4 MPa
- Operating noise:
- 80 dB
- Inlet and outlet pipe diameter:
- 32 mm
- Deemulsification number:
- 15 min
- Cleanliness:
- 6 NAS
- Overall dimension:
- 1600*1280*1900 mm
- Effective filtration area:
- 0.5 ㎡
- Machine power:
- 49 kw
Scope of application:manual automatic lubricating oil vacuum dehydration oil filter is easy to operate, PLC automation is high, with simple operating system and advanced safety system to ensure the convenience and safety of the machine during operation, and can work online for a long time. The user can choose manual or PLC touch screen automatic operation mode according to the needs of the use site.
ZJD lubricating oil vacuum filter is mainly developed and produced according to the characteristics of large impurity content in hydraulic oil, mechanical oil and other lubricating oils. The machine has short treatment cycle and high efficiency. It can quickly remove moisture, gas, impurities and volatiles (alcohol, gasoline, ammonia, etc.) from the oil, improve the quality of the oil, restore the viscosity, flash point and performance of the lubricating oil. Used for purification of hydraulic oil, low viscosity lubricating oil, hydraulic transmission shaft oil, antiwear oil, refrigeration oil, turbine oil, compressor oil, etc. It can quickly remove moisture, gas and mechanical impurities from oil, flash remove light acid and light hydrocarbon, improve oil quality, restore lubricating oil performance, and ensure normal operation of power, hydraulic pressure and lubricating system.
2) Product characteristics:ØStrong impurity removal ability, large-area, deep-seated precision filter material can remove fine particles in oil.
Multi-stage cartridge filter, large-flow cleanable filter element, high filtration efficiency, using step-by-step encryption technology, so that serious pollution of industrial lubricating oil cleanliness, reference level does not exceed NAS 1638 level 7.
Advanced medium endothermic condensation system.
Automatic temperature control heating, automatic condensate separation device, easy to operate, safe and reliable.
Super breaking emulsion ability, both can separate out a lot of water in the oil, but also can remove trace water in the oil.
Coalescence separation and vacuum dehydration are combined. The water separation device adopts excellent polymer membrane coalescence separation technology in the industry, which can quickly and efficiently separate a large amount of water and micro-water from lubricating oil with high water content.
Deep, high-precision FH rectangular filter system, can effectively remove iron filings, dust, and impurities in the oil.
High quality components and sealing materials are used to meet the requirements of high temperature for filtering high viscosity lubricating oil, and the types and ranges of purified oil can be expanded.
Adopt high quality filter material, large amount of dirt, corrosion resistance, high temperature resistance, good mechanical strength, high precision in removing impurities.
Humanized design, infrared liquid level control system, electrical automatic protection control system with phase sequence protection, overload protection, overpressure protection and temperature constant automatic control system ensure simple operation, safety and reliability. The machine can work online for a long time, unique oil pump, low noise, in line with the world's high standards of environmental protection requirements.
And the temperature control is three kinds of interlock protection: 1, the heater is also interlocked with the oil pump and vacuum pump, the heater can only work when the oil pump and vacuum pump are running;2, the heater only works when the oil temperature is lower than the set temperature of 60-70;3, If the heating temperature exceeds the set temperature, the ultra-high temperature is set to stop heating. Moreover, the electrical components used in the equipment are flame-retardant electrical components, so our equipment eliminates the potential safety hazards caused by the failure of the thermostat.
The hydraulic lubricating oil treated by this machine has less water content and high impurity precision, and can be reused in high-precision and hydraulic lubricating equipment at home and abroad. And the machine is novel in design and convenient to use, which can truly save oil and reduce consumption for customers.
Lubricating oil vacuum filter device parameter description
Equipment index name
unit
TR/ZJD-50QTPLC Open
(Manual/PLC automatic switchable integrated)
processing power
L/h
3000
working vacuum
MPa
-0.085~-0.099
work pressure
MPa
≤ 0.4
Operating temperature
℃
40~80
power supply
--
380V/50Hz
work noise
dB(A)
≤ 80
heating power
kW
45
total power
kW
49
inlet and outlet pipe diameter
mm
32mm Equipment appearance color
--
Gray or user-specified color
Reference size
Mm
1600*1400*2000
Equipment Net Weight Reference
Mm
630kg
Oil index after oil circulation treatment
emulsion breaking value
≤15min
dissolved gas content of oil
≤0.1%
filter fineness
≤5 m (free carbon)
water content in oil
≤100ppm
Can be customized as required for closed open vacuum oil filter, suitable for outdoor oil filtration purification
