Three-level precision filtration refueling and oil cleaning trolley| Quick installation screw type

 ————** AboutTR/Tongrui Brand YL-B-100 Oil Department essential three-stage precision filtration refueling oil purification car (quick installation screw type)Sales information Description **———

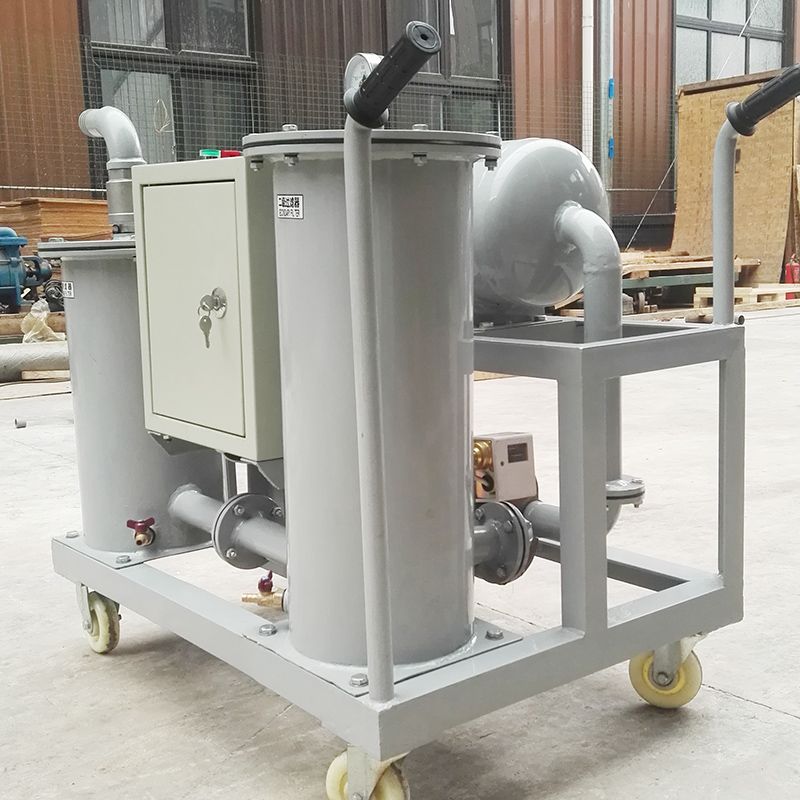

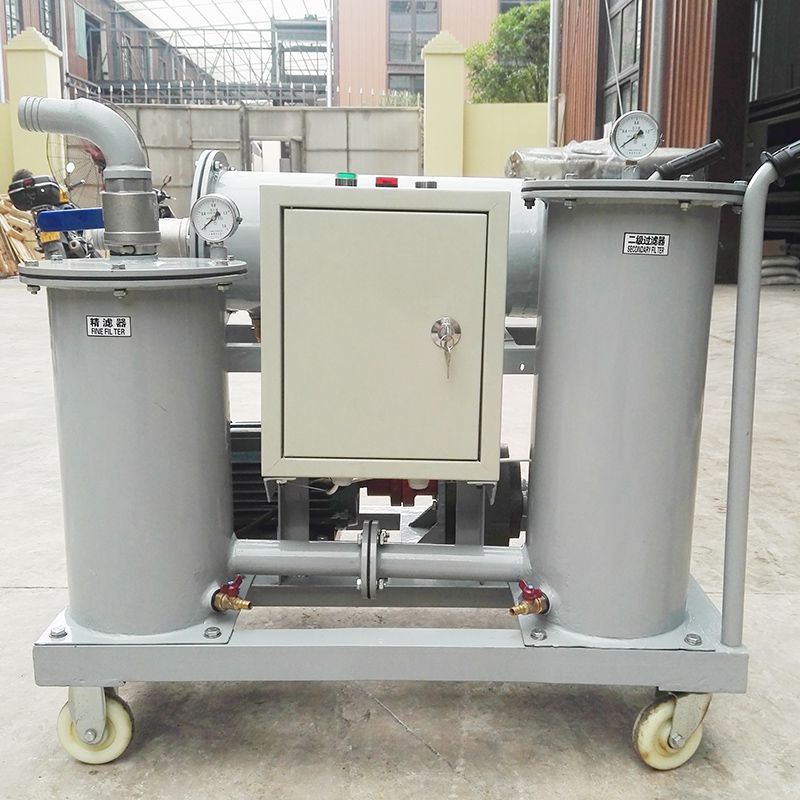

Product Name:YL-B-100Overpressure Protection Three-stage Precision Filtration Oil Cleaning Cart

Packing: Bamboo wooden box packing (we areindependentexport enterprises, in line with the general domestic and foreignbasictransportationrequirements)

Model:YL-B-100(6000L/H)

Other optional specifications:30L/min~500L/min

Annualproductioncapacity:500sets/year

Inventory Description: 10sets of common standard type, are in stock.

Trademark:TR/Tongrui brand

Manufacturer: Chongqing Tongrui Filter Equipment Manufacturing Co., Ltd.(net:www.tongruigl.com)

TypeDescription: Mobile type, precision filter oil machine, three-stage precision filter, overpressure alarm protection type, impurity filter purification typeOther optional structural forms: mobile type, closed type,quick-install screw type,with oil pan type, explosion-proof type, with oil gun and metering type

 —————————**About TR/Tongrui Brand YL-B-100 Three-stage Precision Filtration Oil Purifying Vehicle (Quick Installation Screw Type) Performance and Parameter Description**——————————

1. YL-B-100 mobile refuelingand oil purification trolleyis equipped with pressure protection device. When the working pressure exceeds 0.35Mpa, the equipment will alarm and stop automatically, reminding the operator to clean or replace the filter element in time and check the equipment abnormality. It can effectively protect the filter element from deformation, prevent the motor from being damaged due to too high pressure, prevent the oil pump noise caused by excessive pressure, and prevent potential safety hazards.
2. YL-B can realize the functions of long-distance and high-lift refueling while realizing precision filtration. It can be used for equipment overhaul and installation, field operation equipment repair, emergency and other operations. nbsp;
3.  Therefore, the equipment operation does not require staff to guard the equipment all the time, and the operation is simpler and more convenient.
4.  Three-stage filtration, light and flexible, easy to operate, economical, no filter paper, no pollution site
5. YL-B-100 mobile refuelingoil cleaning trolleycan filter harmful mechanical impurities in oil, and plays a good role in filtering and purifying low and medium viscosity oil products such as lubricating oil, gear oil, turbine oil, transformer oil, hydraulic oil, engine oil, diesel oil, etc., multi-stage interception of impurities, oiling and cleaning oil system pipelines.
6. It is also a common oil filtering equipment for oiling, pumping, high-precision impurity removal and cleaning oil system pipelines of transformers, machine tools, oil switches and other equipment with small oil consumption in various industries such as electric power, petrochemical, metallurgy, machinery and railways. It is especially suitable for long-distance, high-lift refueling and pumping in electric power departments.
7. General configuration suitable viscosity ≤200cStoil; if necessary, heating type portable oil filtercar, model YL-Rseries.

Mobile portable explosion-proof oil filter equipment Other information, please contact Miss Li

 —————————**About YL-B-100 three-stage precision filtration refueling oil purification trolley (quick screw type) Maintenance Description**————————


YL-B-100filter maintenance:

1)       The machine mainly adopts mechanical filtration mode, and gradually reduces the density of the filter screen to achieve the purpose of improving the filtration accuracy. It can be seen that during the operation of the equipment, the primary filtration is easy to be blocked by impurities. At this time, the oil intake is less than the oil output, and the oil intake speed is relatively slow.

2)       Treatment method: Remove the upper cover of the primary filter, remove the filter, clean it with clean oil (kerosene or gasoline), and restore it to work.

3)       Identify the secondary filter and fine filter element, whether it should be cleaned, pay attention to the pressure gauge above the filter. When the pressure gauge value of the filter reaches0.3Mpa, stop the operation of the equipment, remove the screws on it and remove the upper cover.

4)       The filter element is a threaded interface that can be rotated to remove the filter element.

5)       Clean with clean cleaning oil (or gasoline) of the same type, and brush the filter surface with a soft brush (the filter surface can be peeled open for cleaning). After completion, it is recommended to use an air compressor to align the filter thread port and blow air from the inside out (this helps the filter clean more cleanly).

6)       After cleaning, restore each part and check whether the screw connection is firm.

Sales manager, Li Qin   mobile phone and WeChat with the same number, please add contact.
