Product DescriptionCompany Info.
- Principle:
- Vacuum filtration
- Style:
- Vertical type
- Applicable object:
- Transformer oil
- Model:
- TR/ZJA-50QFT mobile trailer
- Filter type:
- Paper core
- Performance:
- High efficiency filtration
- Rated flow:
- 3 m3/h
- Working pressure:
- 0.4 MPa
- Operating noise:
- 80 dB
- Inlet and outlet pipe diameter:
- 25 mm
- Deemulsification number:
- 15 min
- Cleanliness:
- 6-8 NAS
- Overall dimension:
- 1900*1450*1900 mm
- Effective filtration area:
- 0.28 ㎡
- Machine power:
- 49 kw
ZJA double-stage vacuum oil filter of Tongrui Company retains all the advantages of ZJB series vacuum oil filter, and adds Roots vacuum pressurization system and secondary high vacuum pumping system to overcome the weakness of rapid decrease of exhaust volume of vacuum oil filter when vacuum degree is high. One cycle is equivalent to the efficiency of two ordinary vacuum oil filters.

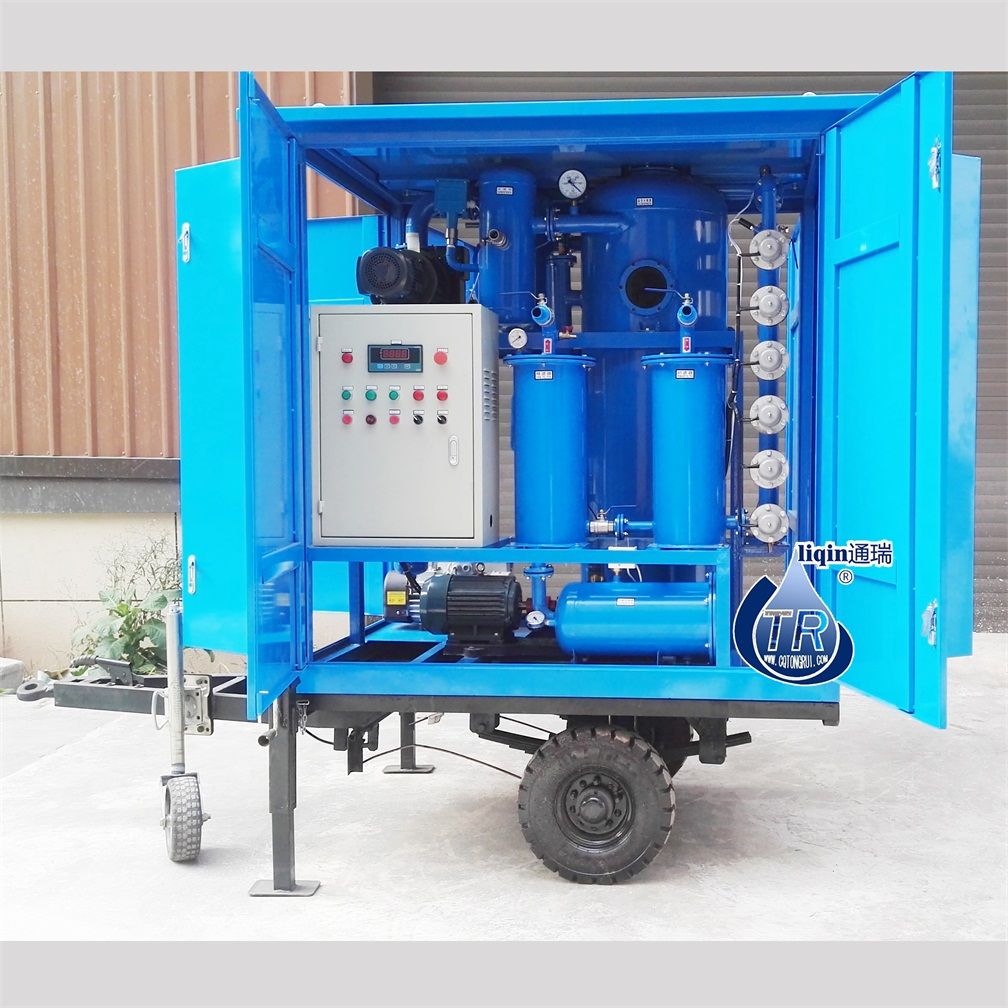

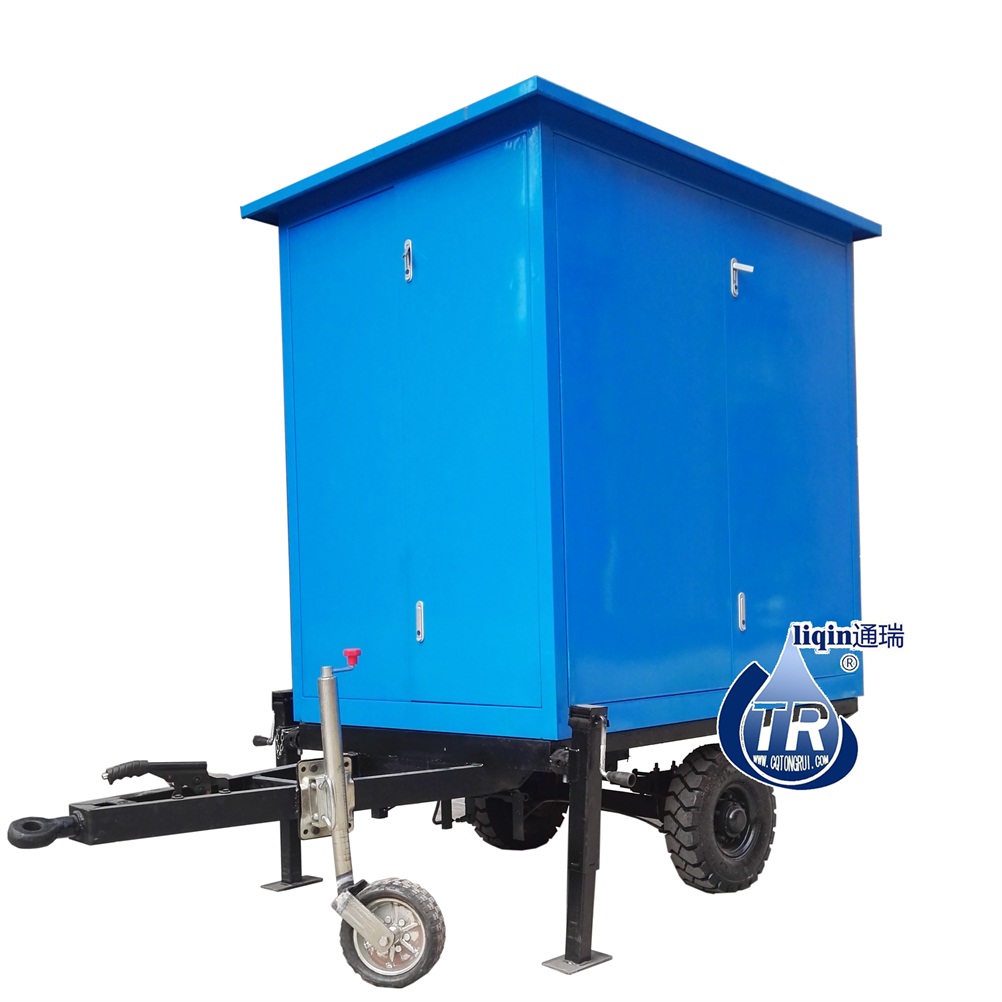

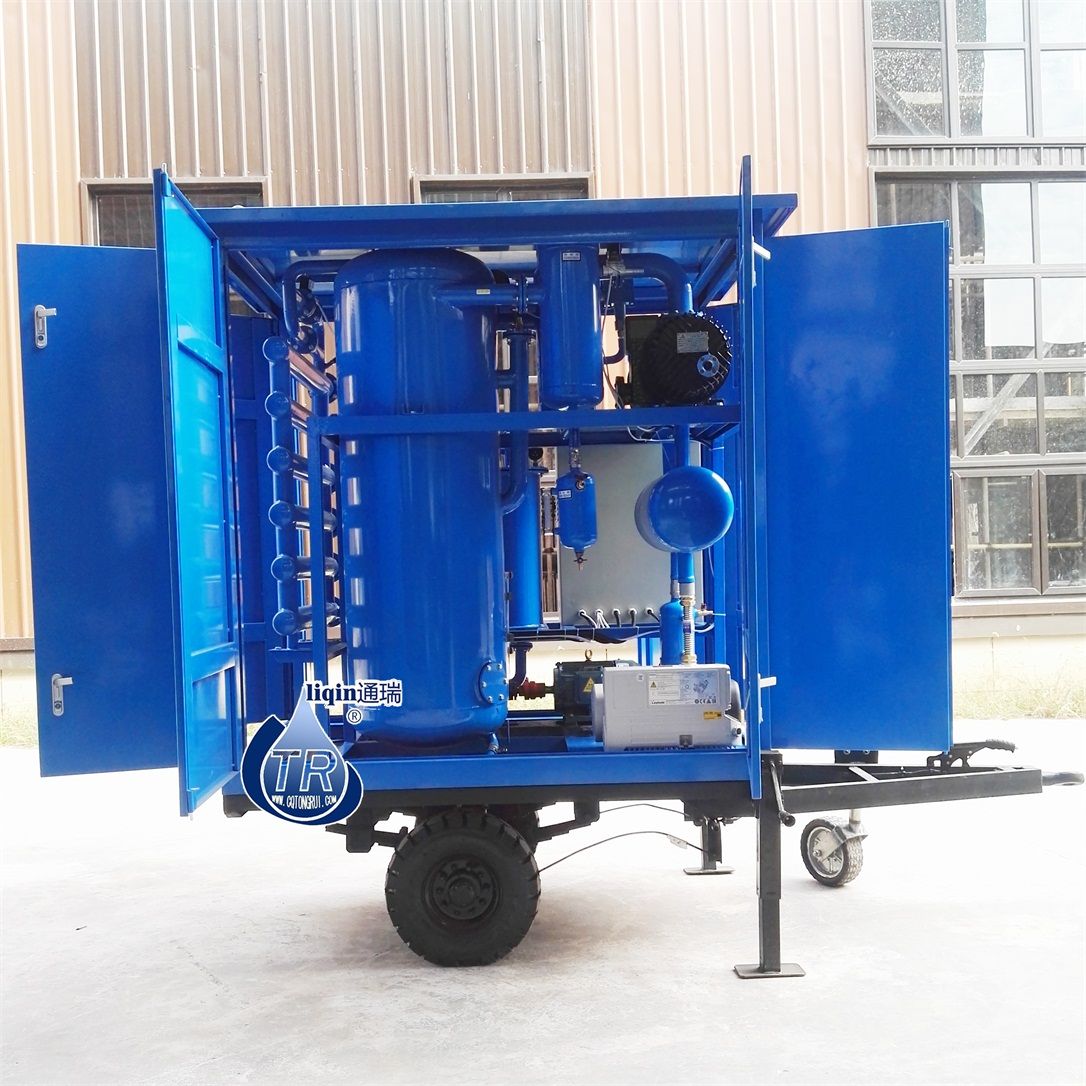

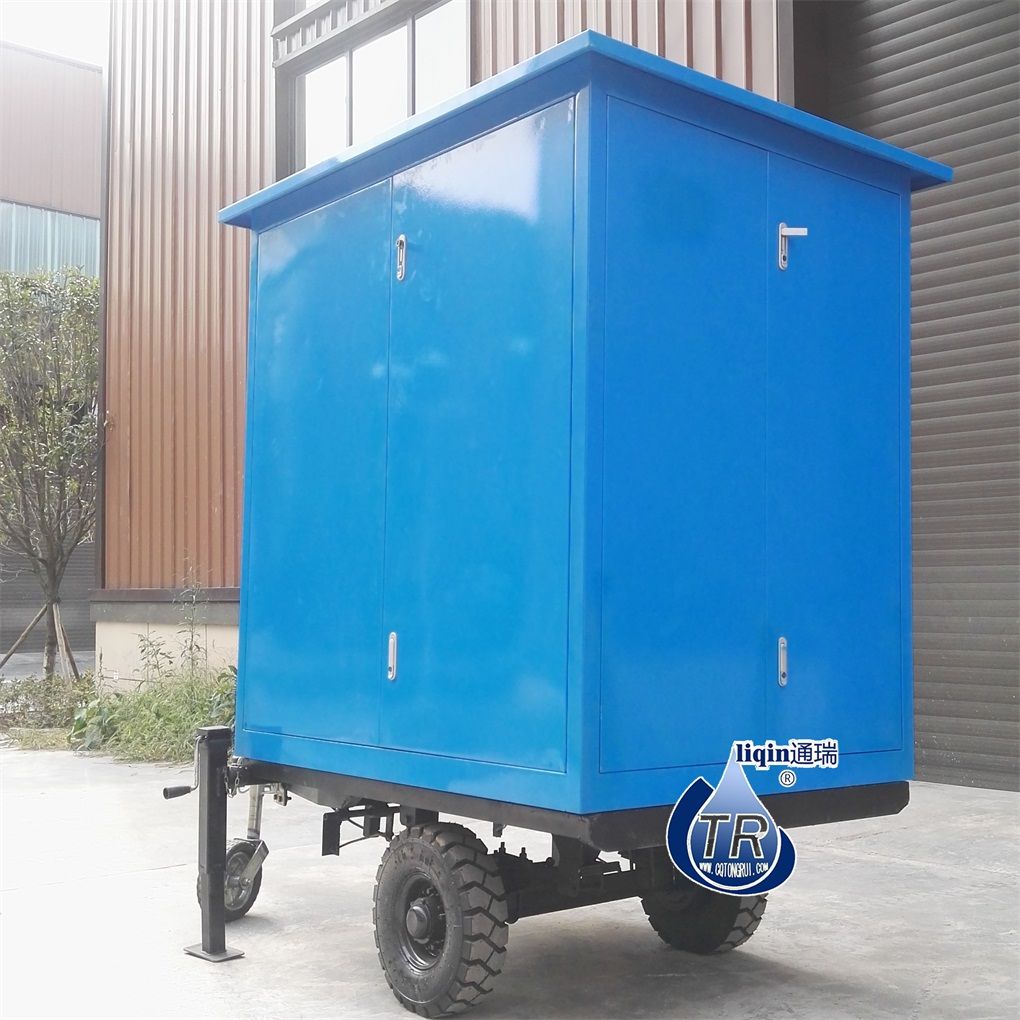

It can dehydrate, degas and remove impurities faster and more thoroughly; the oil insulation voltage resistance value is higher; one machine has two uses, it is an oil filter, and it is also an independent vacuum source, which can vacuum oil the power insulation equipment; it can greatly shorten the oil treatment period of transformer installation and maintenance, and can also greatly increase the oil index of various imported oils and new oils! It is convenient for outdoor mobile operation, so the equipment is configured as trailer type, and the oil filter also adopts closed configuration: the four side walls can be opened upwards and can be self-locking or opposite to open, both rain and shade, suitable for outdoor operation. It is mainly used for large installation and maintenance equipment in electric power industry (such as vacuum oil filter, vacuum pump unit, vacuum drying equipment, etc.).
The two-stage vacuum oil purification device provided has the following functions:
●● Hot oil circulation
●● Transformer oil dehydration, degassing (acetylene\hydrogen\methane harmful gases), impurity removal
●● Transformer oil filtration purification
●● Transformer vacuum pumping
●● With oil in and out exchange function
● Oil treatment on site and drying of electrical equipment
● Vacuum oiling of electrical equipment
●● Trace moisture purification treatmentTR/ZJA-50QFT Mobile Trailer Treated Oil Index
oil breakdown voltage
≥KV
dissolved gas content of oil
≤0.1%
filter fineness
1~3 m (free carbon)
water content in oil
3~5ppm
acetylene
0
- Name（chinese）
- Name（English）
- Chongqing Tongrui Filtration Equipment Manufacturing Co., Ltd.
- China credit code
- Identity Verification
- Registered Capital
- 5,000,000 CNY
- Operating term
- 2007-03-12 ~ ****
- Address
-
Dadukou District, Chongqing, China
- Nearby port
- Tianjin,Qingdao,Yantai,Nantong,Suzhou,Nanjing,Lianyungang,Shanghai,Ningbo,Zhoushan,Wenzhou,Fuzhou,Xiamen,Shantou,Shenzhen,Guangzhou,Zhuhai,Zhanjiang,Haikou,Fangcheng
Chongqing Tongrui Filter Equipment Manufacturing Co., Ltd. is a comprehensive enterprise specializing in the development, research, and production of various oil filtering and purification equipment, including oil filtering machines, vacuum oil filtering machines, and oil filtration purification equipment. Our products are widely used in various industries such as electric power, petroleum and natural gas, mining, machinery manufacturing, steel, metallurgy, chemical, railway, paper making, pharmaceutical, aviation, shipping, and various large enterprises. We offer more than ten series and hundreds of varieties, including the ZJA high-efficiency double-stage vacuum oil filtering machine, ZJB/ZJB-T transformer oil high-efficiency vacuum oil filtering machine, ZJC turbine oil filtering machine, ZJD lubricating oil filtering machine, ZJD-S lubricating oil dehydration filtering machine, ZJD-F coalescence and separation light oil filtering machine, ZJD-R lubricating oil regeneration and acid removal filtering machine, ZJL multi-functional single-stage regeneration oil treatment machine, ZJR multi-functional double-stage regeneration oil filtering machine, YL portable filtering and refueling machine, YL-B overpressure protection portable oil filtering machine, BK pressure plate and frame oil filtering machine, BZ transformer oil regeneration, decolorization, and acid removal device, JYWL series plate closed filtering tank, DIR waste engine oil distillation (lubricating oil) equipment, and NRY internal combustion engine oil filtering machine. These products can meet the filtration needs of various types of lubricating oils in different industries. Additionally, we offer a variety of special configurations for your choice: enclosed oil filtering machine, explosion-proof oil filtering machine, trailer-type oil filtering vehicle, PLC fully automatic oil filtering machine, touch screen controlled oil filtering machine, fully imported configuration filtration and purification machine, etc. We can provide targeted solutions according to the special needs of different customers, providing a strong guarantee for their safe production, energy conservation and consumption reduction, and production cost reduction.- Name（chinese）
