Product DescriptionCompany Info.
- Principle:
- Vacuum filtration
- Style:
- Vertical type
- Applicable object:
- Transformer oil
- Model:
- ZJB-200
- Filter type:
- Fibre
- Performance:
- High efficiency filtration
- Rated flow:
- 12 m3/h
- Working pressure:
- 0.4 MPa
- Operating noise:
- 60-80 dB
- Inlet and outlet pipe diameter:
- 48 mm
- Deemulsification number:
- 15 min
- Cleanliness:
- 6 NAS
- Overall dimension:
- 00 mm
- Effective filtration area:
- 0.5 ㎡
- Machine power:
- 33 kw

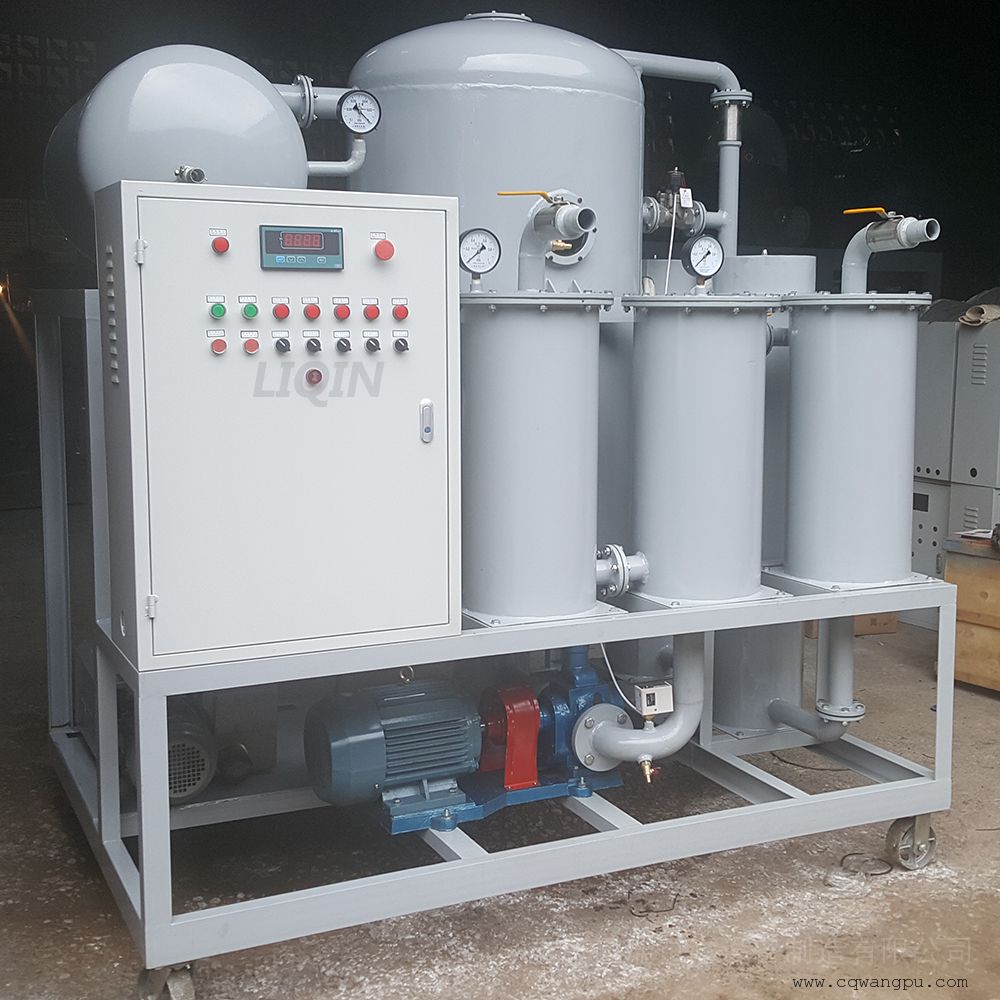

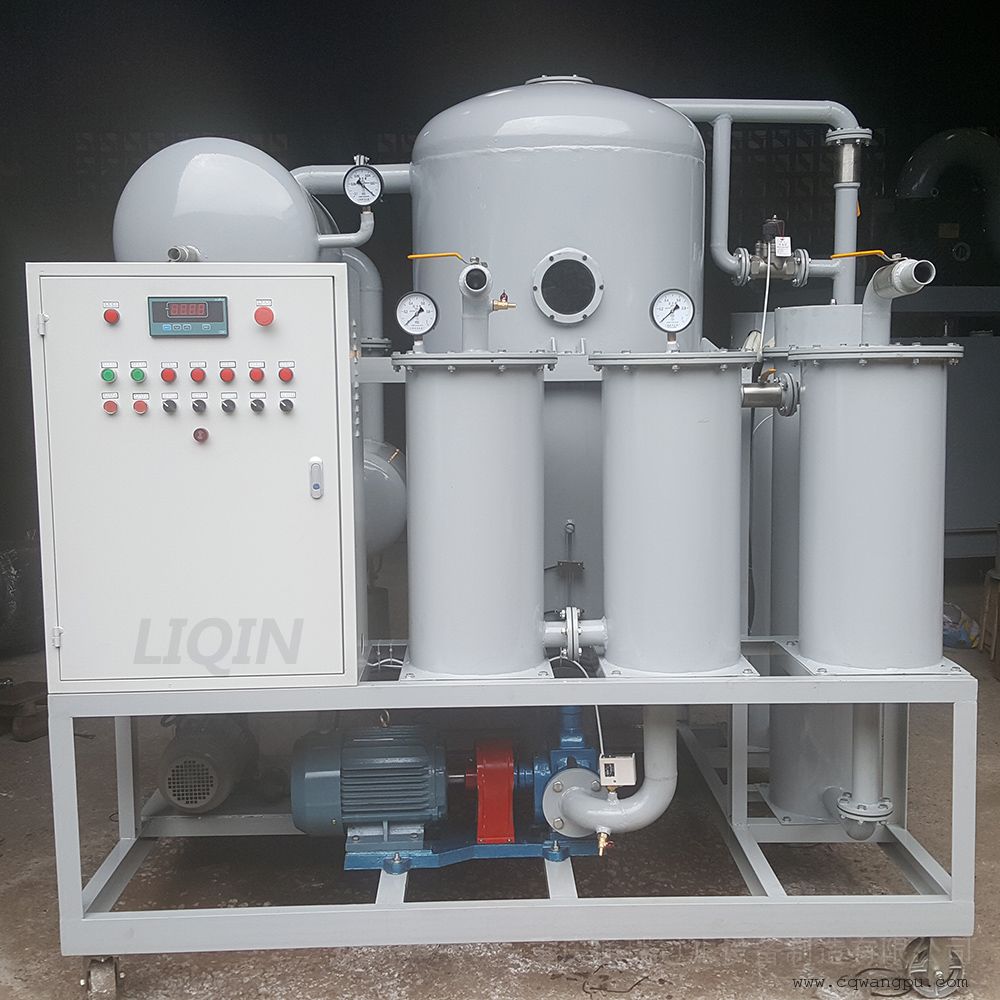

Application:Tongrui brand ZJB-200Q transformer oil efficient vacuum oil filter is a fixed product of Guodian Company. It adopts stereo evaporation technology and combines many new technologies. It is widely used in power plants, power stations, electric power companies, substation industries, railways, petrochemicals, metallurgy and other fields. It is a special equipment for power departments and industrial and mining enterprises to deal with unqualified transformer oil, transformer oil, switch oil and other insulating oils. It is also a common oil filter choice for vacuum oiling of power equipment.
Product features:1, the use of unique three-dimensional flash technology, rapid separation of oil moisture, gas, system maintenance-free.2, mesh filtration and polymer adsorption technology, the use of high-quality filter elements, large amount of dirt, step-by-step encryption, high precision, multi-stage filtration.3, safe and reliable heating system, * optimized pipeline design, to ensure no“ dead oil”.4, infrared liquid level automatic control, automatic balance in and out of oil, truly achieve man-machine separation.5, the machine can be transformer and other insulated power equipment vacuum oil, vacuum drying.6. The machine also has vacuum oiling and on-site electrified treatment of transformer oil of any grade.7, the machine has a trinity of interlocking electrical automatic protection devices (phase sequence protection, overload protection, overvoltage protection), using the company's special precision oil pump, low noise, in line with environmental protection standards.8, temperature control is three kinds of chain protection:
A, the heater is also interlocked with the oil pump and vacuum pump, the heater can only work when the oil pump and vacuum pump are running;B, the heater only works when the oil temperature is lower than the set temperature of 60℃-70℃;C, if the heating temperature exceeds the set temperature, * after the ultra-high temperature setting protector function and stop heating. Moreover, the electrical components used in the equipment are flame-retardant electrical components, so our equipment eliminates the potential safety hazards caused by the failure of the thermostat.9, can randomly detect the withstand voltage value and automatically print the test results (ZJB-T series)Advantage Technology:This machine belongs to a new type of high efficiency vacuum oil filter, with three-dimensional flash and microgram technology, and the use of mesh filtration and polymer adsorption combined impurity removal technology, its efficiency is 5-8 times higher than the general vacuum oil filter, energy consumption is extremely low.Can be designed and produced according to different requirements of customers, accept special orders.namesTongrui ZJB-200 transformer oil efficient vacuum oil filteritemof model numberTRZJB-200QEquipment related parametersnominal flow rate12000L/Hworking vacuum-0.065~-0.096Mpawith a controlled range20~80℃oil pump pressure≤0.4MpaNoisedb(A)65~85 db(A)power supply380V/50HZheating power120 KWmachine power130 KWinlet and outlet diameterDN 50Appearance sizemm1800*1350*1950installation (unit) weight1200kgtreated oil indexoil breakdown voltage≥65KVdissolved gas content of oil≤0.1%filter fineness≤5 m (free carbon)water content in oil5~8ppmafter-sales service commitment
1. The warranty period of vacuum oil filter machine is one year (except consumables). During the warranty period, major problems of equipment shall be subject to three guarantees. Any abnormal problems shall be handled by the supplier free of charge. If they occur outside the warranty period, the supplier shall provide lifelong free technical service and only charge the cost of accessories.
2. The supplier guarantees that the equipment provided meets the requirements of safe production and reliable operation of the user, and is responsible for the design, manufacture, test, supply, shipment, on-site commissioning and other processes of the equipment;
3. Within the specified quality warranty period, the supplier shall be responsible for any defects and failures caused by defects in the design process or materials, and shall be responsible for the losses caused.
4. After the equipment is put into operation, if the supplier needs to provide on-site service due to product quality reasons, the supplier shall respond within 2 hours after receiving the written notice from the buyer and arrive at the site within 72 hours. The supplier shall take full responsibility for accidents caused by product quality.
5. The supplier shall dispatch experienced technicians to the site to guide the installation and debugging work within two days after the goods arrive at the site.
