• Product Description
    Company Info.
    <
    >
    <
    >
    Basic Info.
    Principle:
    Pressure filtration
    Use:
    Oil removal and filtration
    Applicable object:
    Oil removal of impurities
    Style:
    Plate-frame type
    Performance:
    High efficiency filtration
    Filter type:
    Fibre
    Filtration accuracy:
    5-10 um
    Working pressure:
    less than 0.4 MPa
    Operating temperature:
    20-80 ℃
    Effective filtration area:
    0.39-3 ㎡
    Applicable viscosity:
    200 pas
    Overall dimension:
    00 m
    Equipment weight:
    00 kg
    Model:
    BK
    Product Description

     BK pressure plate and frame type oil filter is suitable for filtering engine oil, turbine oil, diesel oil with more impurities and finer particles, quenching oil and heat treatment oil with more impurities. This machine uses special filter cloth or filter paper as medium to intercept and filter impurities in oil. Because of its low maintenance cost and wide application range, it is favored by many oil units and manufacturers.

    BK frame oil filter Other uses: It can also filter and purify transformer oil, capacitor oil, insulating oil, gear oil, hydraulic oil, turbine oil, compressor oil and light oil, remove a large number of mechanical impurities in the oil, and improve various properties of the oil. Applicable to power plants, power stations, industrial and mining enterprises, lubricating oil depots, ships, chemical industry, metallurgy, and other machinery industry units.

    Features: low price, simple operation, easy maintenance, stable and reliable performance.
    According to different environmental requirements, can choose to configure a common type, explosion-proof type.
    Main structure of frame oil filter:
    The machine is composed of gear pump, filter, return valve, drain nozzle, filter bed (including pressure gauge, filter plate, filter frame, filter paper and oil pan), front support, rear support, chassis, pull rod, coupling and motor, wherein the filter plate and filter frame alternately form independent filter chambers, and the filter paper is clamped between the filter plate and filter frame. The filtered oil is sucked from the oil inlet hole of the filter, and after removing large impurities through the filter, it enters the gear pump again. The motor drives the gear pump to rotate through the coupling, so that the oil pressure enters the filter bed, and impurities in the oil are filtered through the filter paper. Due to the capillary action of oil filter paper, it can absorb residual water in oil. The function of the return valve is to control the pressure of the pipeline system. When the oil pressure exceeds the specified value, the safety valve can be opened to reduce the pressure, so that the oil circulates in the pump itself, and the oil pressure no longer rises to ensure the safe operation of the equipment. Return valve with gear pump inlet vacuum effect, the oil pan will be sucked into the filter. Drain nozzle for extracting oil sample.



    model
    BK-50
    BK-100
    BK-120
    BK-150
    BK-200
    oil filtration capacity
    L/min
    >50
    >100
    >120
    >150
    >200
    work stress
    MPa
    0-0.3
    filter area
    m2
    0.39
    1.30
    1.54
    1.89
    2.01
    Frame size
    mm
    180×180                280×280
    compression formula
    manual screw compaction
    Number of filter frames
    8
    10
    12
    15
    17
    Number of filter plates
    9
    11
    13
    16
    18
    flow
    L/min
    >50
    >100
    >120
    >150
    >200
    increase the pressure
    Mpa
    0.6

    electricity
    move
    chance
    model
    Y80L2-4
    Y90L-4
    Y1001L-4
    Y100L2-4
    power
    KW
    0.75
    1.5
    2.2
    4
    revolution
    r/min
    1390
    1400
    Oil inlet diameter DN
    20
    32
    Outlet diameter DN
    20
    32
    Outline size
    long
    mm
    620
    900
    950
    1050
    wide
    mm
    360
    430
    tall
    mm
    620
    800
    900
    the weight
    kg
    126
    300
    330
    380
    450
    Filter paper size
    mm
    200×200
    296×296
    Filter cloth size
    mm
    180×180
    280×280
    315×315

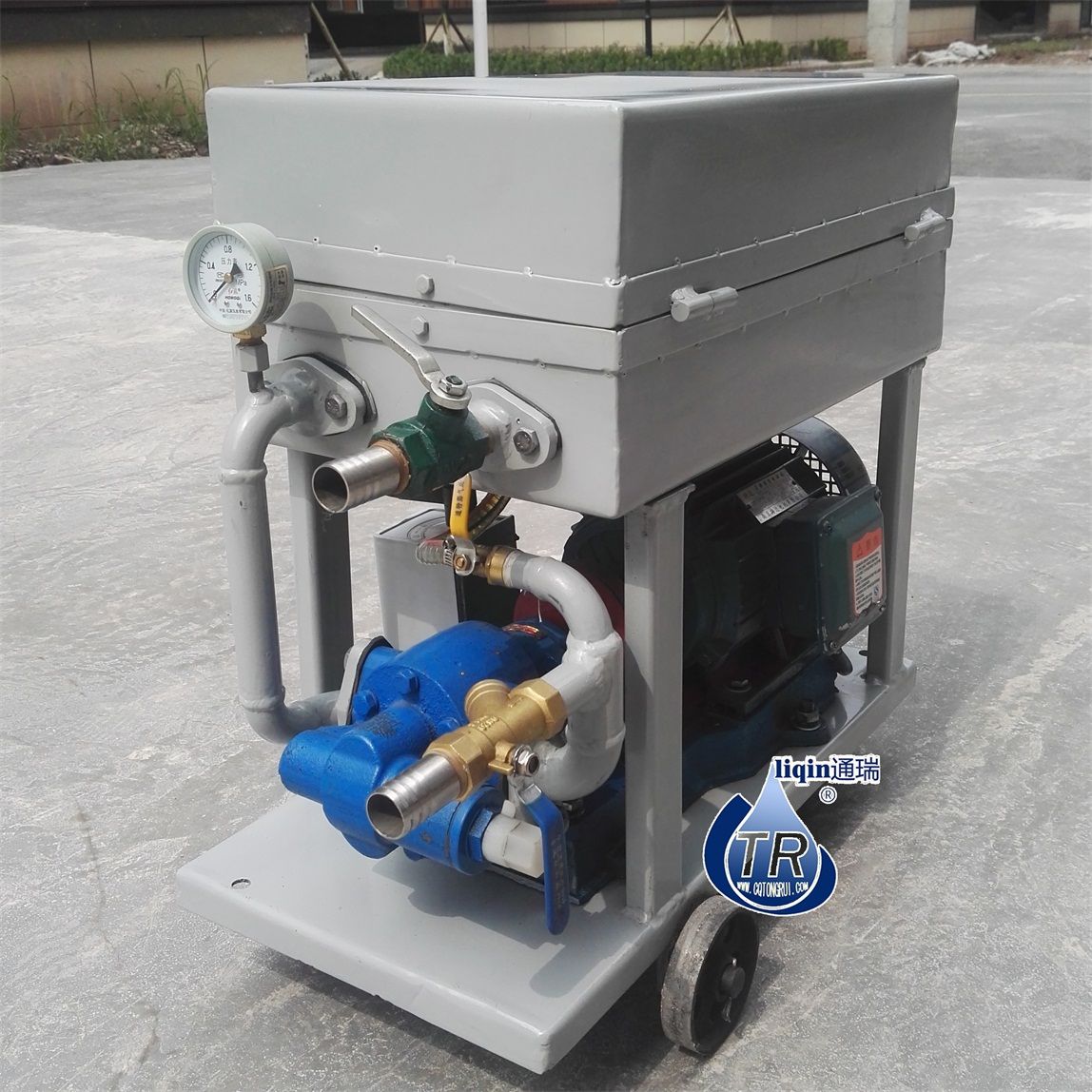

    BK-50 plate and frame oil filter



    BK-200 plate and frame oil filter
