Double stage vacuum oil filter for acetylene removal with flowmeter transformer oil

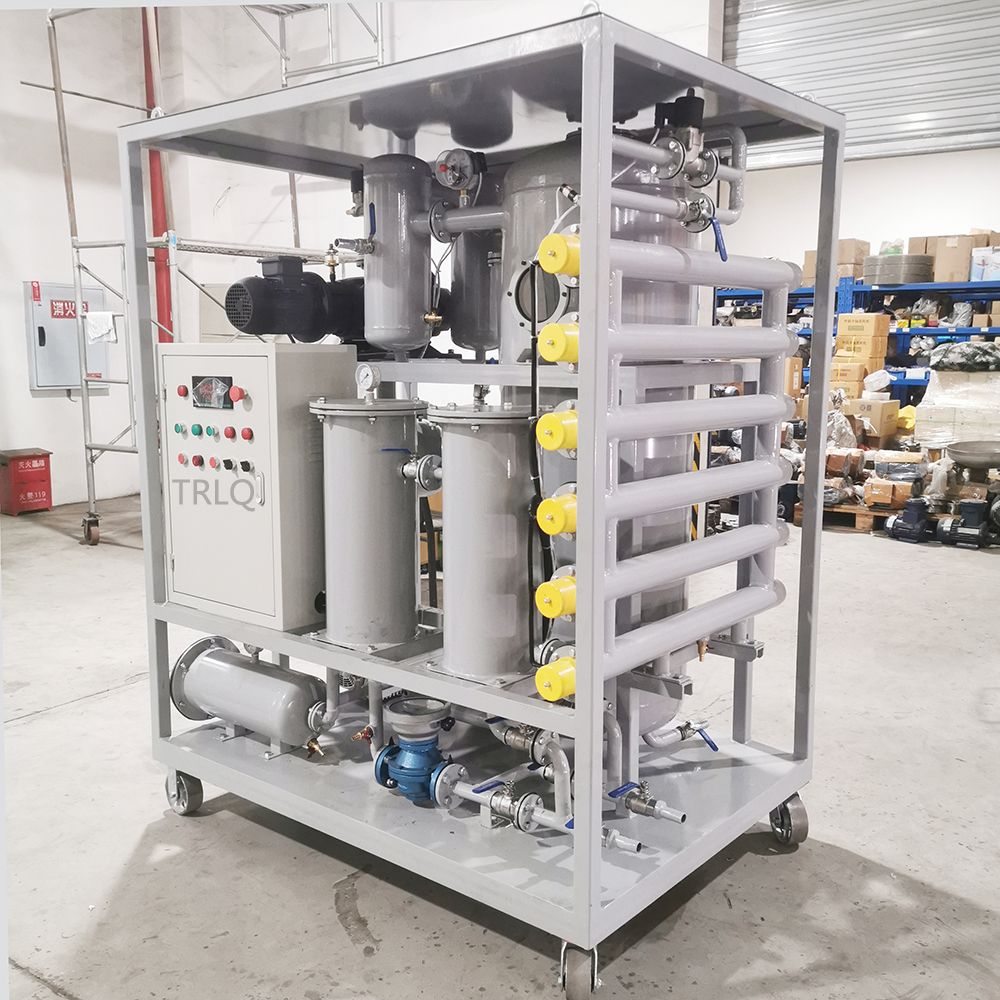

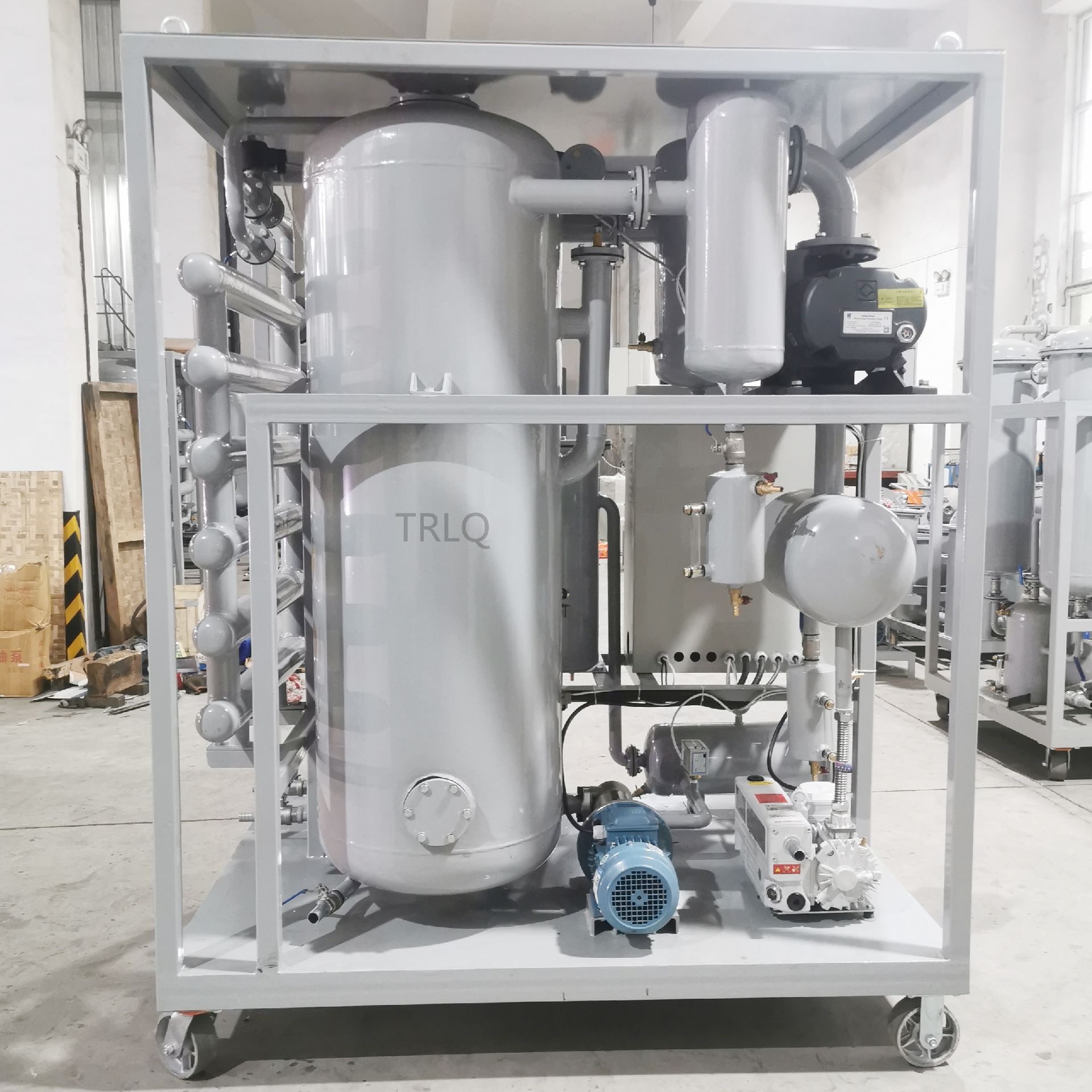

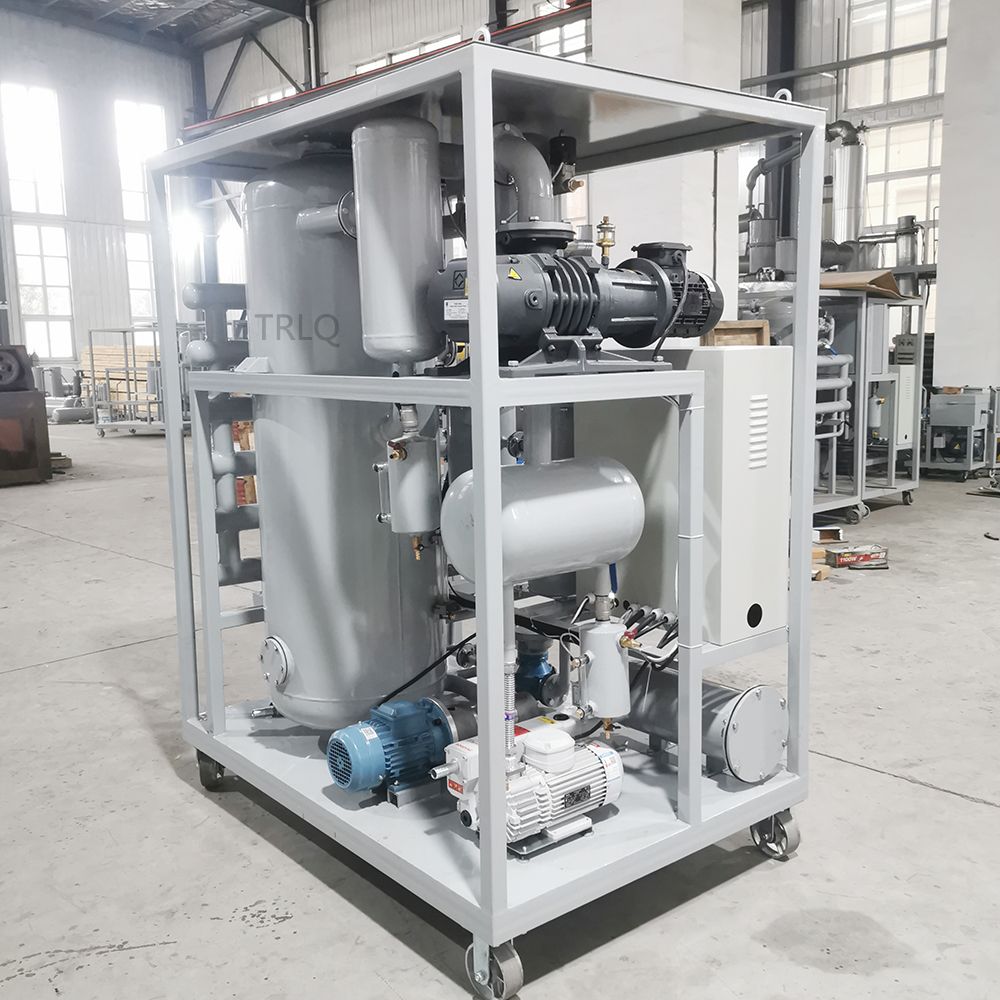

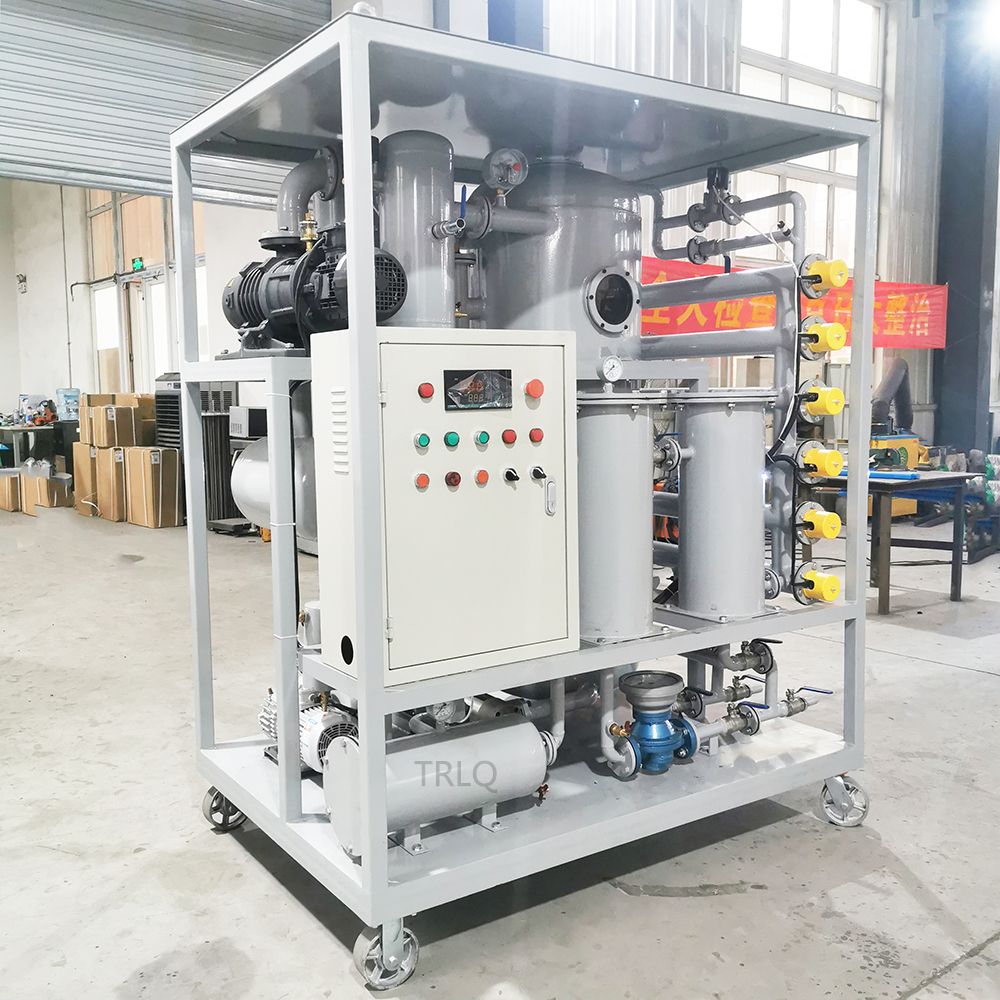

TRZJA30QT2 in this connection productto acetylene with flowmeter transformer oil two-stage vacuum filter unit uses German Laibao vacuum pump (to make vacuum pumping more stable), screw pump combined with stainless steel heating pipe parts (to ensure effective removal of acetylene harmful gases in the oil, and heating filter does not produce other harmful gases), Schneider Electric, equipment increased tarpaulin cover, equipment inlet and outlet for bridge connection (in and out of the oil guide switch convenient and fast), equipment oil outlet installed at the domestic flowmeter (easy to check the amount of filtered oil vacuum pumping).

Widely used in power plants, power stations, power companies, metallurgy, petrochemical, machinery, transportation, railway and other industries, mainly used for 110KV above large-scale voltage transmission equipment and national main substation network, large-scale substation transformer on-site maintenance and new oil, imported oil and other insulating oil rapid deep treatment; new oil, imported oil, transformer oil and transformer system capacitor oil and refrigeration oil and other more expensive oil vacuum filtration, purification treatment; New oil, imported oil, base oil micro-water purification treatment.

Especially suitable for areas with an altitude of 500 meters and above, it has the functions of field oil filtration, oil supplement and vacuum pumping.

All indexes of the product are much higher than the national standard. Compared with single-stage vacuum oil filter, its dehydration, degassing and impurity removal (mechanical impurities and free carbon) effect is faster, the oil limit withstand voltage and flash point are higher, and the breakdown voltage of one filtration can be increased by 35KV, which reduces the harm of oil aging caused by repeated heating of general oil filter.

The double-stage vacuum with large pumping rate can improve the vacuum environment in the tank to the maximum extent, so that it can reach high vacuum, the limit vacuum is 5Pa, and the working vacuum is 35Pa, so that the oil temperature remains unchanged during the treatment process, and the installation or maintenance site needs to vacuum the transformer body, which greatly shortens the oil treatment period.

Compared with single-stage vacuum oil filter, this equipment can dehydrate, degas and remove impurities faster; the oil limit pressure resistance value is higher; one machine has two functions, it is an oil filter and an independent vacuum source, which can vacuum oil the power insulation equipment; it can greatly shorten the oil treatment period of transformer installation and maintenance, and can also greatly improve the oil quality index of various imported oil and new oil!
