Product DescriptionCompany Info.
- Brand:
- TONGRUI
- Principle:
- Vacuum filtration
- Style:
- Vertical type
- Applicable object:
- Transformer oil
- Model:
- ZJB100Q
- Filter type:
- Fibre
- Performance:
- High efficiency filtration
- Rated flow:
- 6 m3/h
- Working pressure:
- 0.4 MPa
- Operating noise:
- 78 dB
- Inlet and outlet pipe diameter:
- 42 mm
- Deemulsification number:
- 15 min
- Cleanliness:
- 6 NAS
- Effective filtration area:
- 0.5 ㎡
- Machine power:
- 66 kw
Daily export, bamboo plywood
- After-sales Service：
- The product warranty period is 12 months from the date of delivery, with lifelong responsibility for product maintenance.
During the warranty period, all non-human-induced damaged parts (excluding filter consumables) will be replaced free of charge. A set of spare parts will be provided with the equipment
- Warranty：
- 1 years
- Warranty of core components：
- 1 years
The ZJB series high-efficiency vacuum oil filter is a designated and finalized product of the State Grid Corporation of China. This machine adopts multi-dimensional evaporation technology and combines multiple patented technologies from Chongqing Tongrui, making it widely applicable in power plants, power stations, electric power companies, the power transformation industry, railways, petrochemicals, metallurgy, and other fields. It is a specialized equipment for power departments and industrial and mining enterprises to process unqualified transformer oil, instrument transformer oil, switch oil, and other types of insulating oils. It is also a practical choice for vacuum oiling of power equipment.
The standard configuration features manual operation mode and is made entirely of carbon steel. Optional additional devices are available for an extra fee.
You can choose stainless steel SS304 for the oil circuit, or use SS304 for both the oil and gas circuits;
It can be designed as an automatic operation mode using a PLC touch screen;
It offers a switchable mode that combines manual mode and PLC automatic mode;
Vacuum pumps, oil pumps, and motors are typically produced in China, but brands from other countries can be selected as needed.
A flowmeter can be installed at the oil outlet;
The equipment structure can be chosen as trailer-type or enclosed-type according to different environmental usage needs.

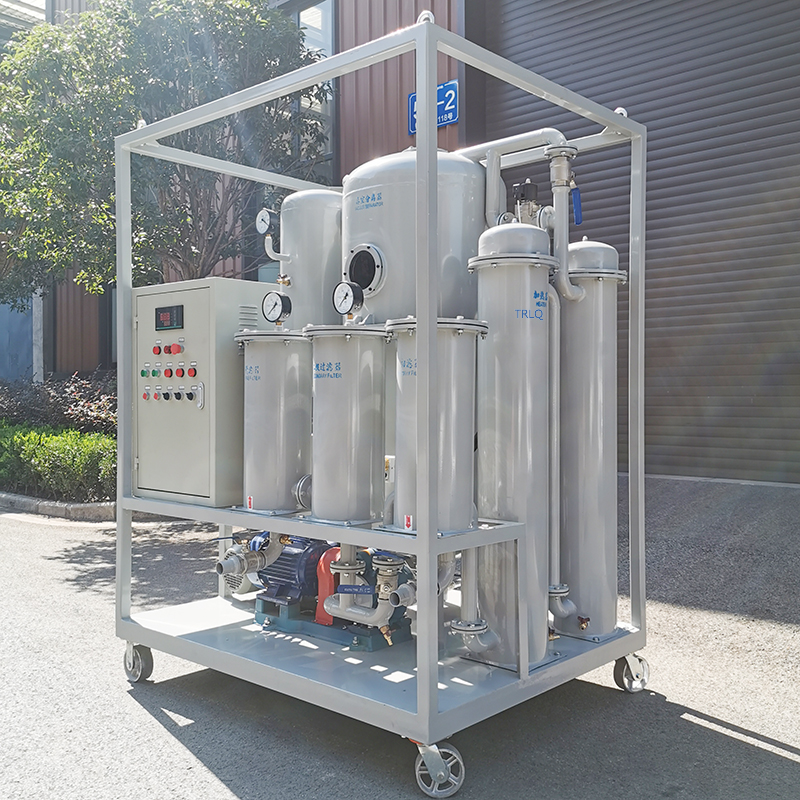

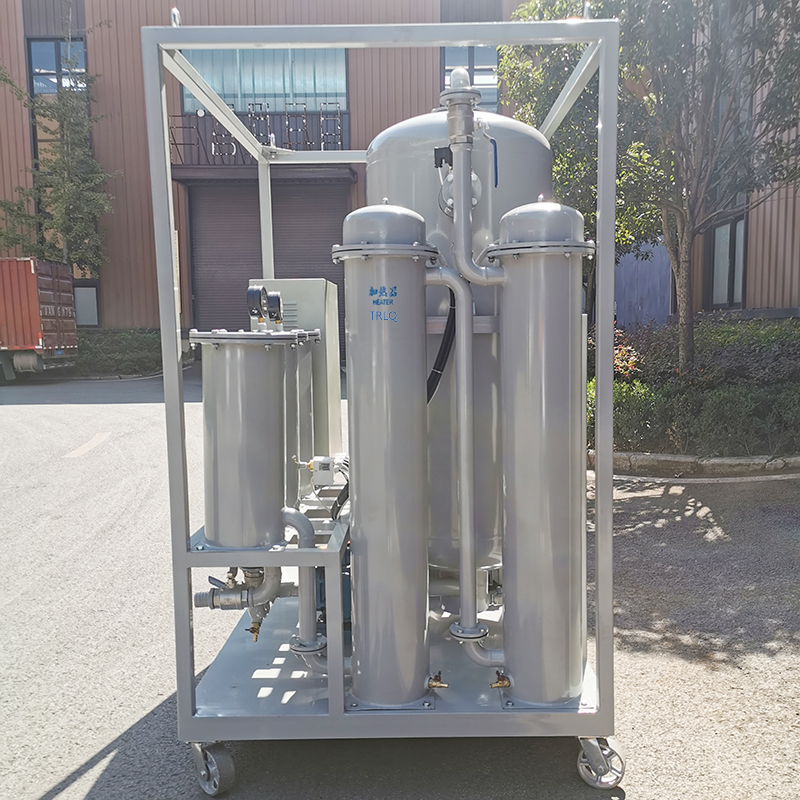

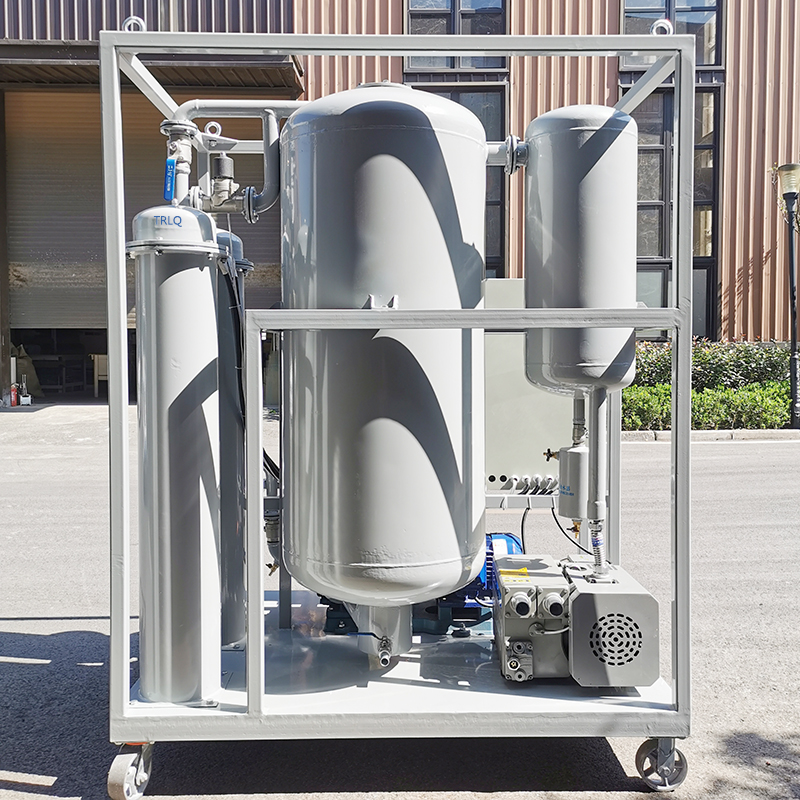

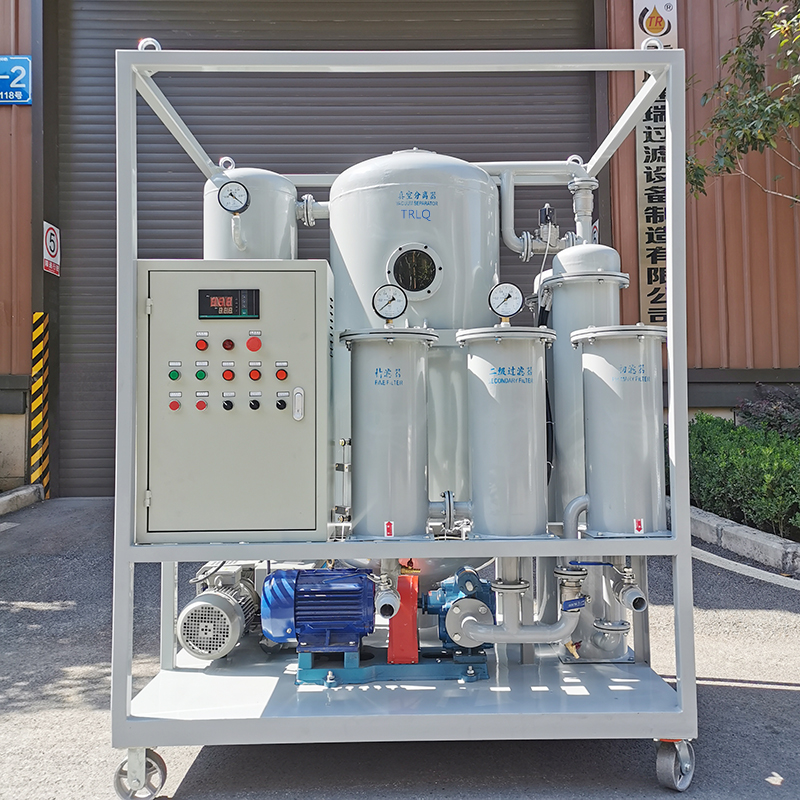

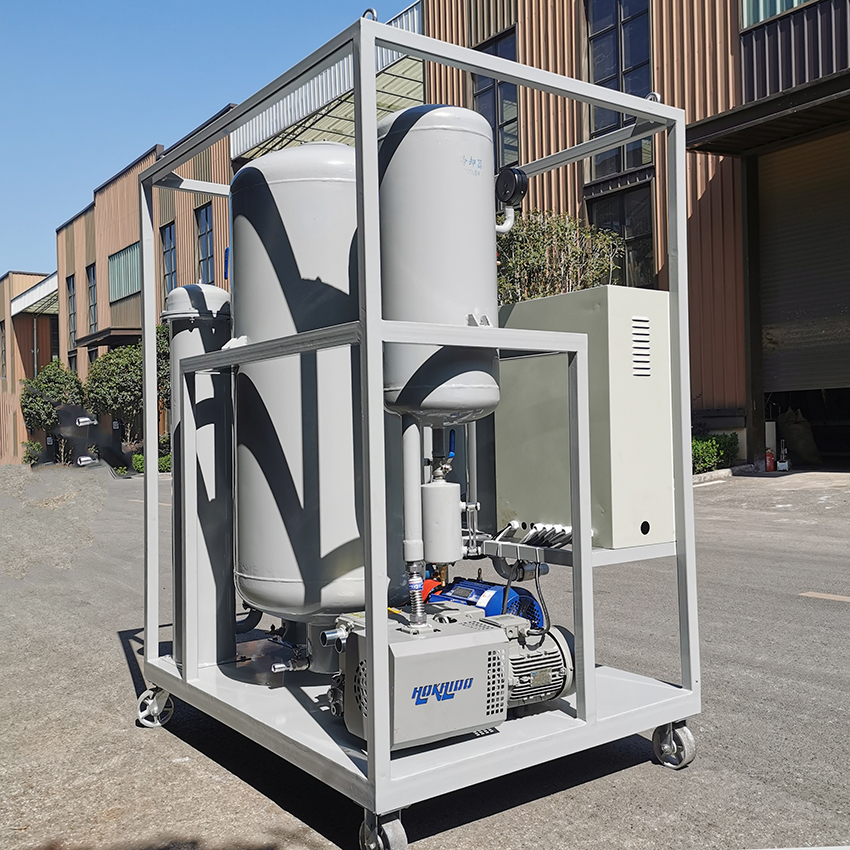

Name: Standard Mobile Transformer Oil Vacuum Filter
Model: Tongrui ZJB-100Q
Equipment-related parameters
Nominal flow rate: 6000L/H
Operating vacuum degree: -0.06 to -0.098 MPa
Temperature control range: 20~80℃
Oil pump pressure ≤0.5Mpa
Noise db(A) ≤ 80 db(A)
Power Supply: 380V/50HZ, Three-phase
Heating power: 60 kW
Overall power: 66 kW
Inlet and outlet pipe diameter: DN 40
Overall dimensions (mm): 1700*1350*1850
Equipment weight: 800kg
Oil indicators after circulating treatment
Oil breakdown voltage: 55KV~65KV
Gas content in oil: ≤0.1%
Filtration accuracy: ≤5µm (no free carbon)
Water content in oil: 5-8 ppm
- Name（chinese）
- Name（English）
- Chongqing Tongrui Filtration Equipment Manufacturing Co., Ltd.
- China credit code
- Identity Verification
- Registered Capital
- 5,000,000 CNY
- Operating term
- 2007-03-12 ~ ****
- Address
-
Dadukou District, Chongqing, China
- Nearby port
- Tianjin,Qingdao,Yantai,Nantong,Suzhou,Nanjing,Lianyungang,Shanghai,Ningbo,Zhoushan,Wenzhou,Fuzhou,Xiamen,Shantou,Shenzhen,Guangzhou,Zhuhai,Zhanjiang,Haikou,Fangcheng
Chongqing Tongrui Filter Equipment Manufacturing Co., Ltd. is a comprehensive enterprise specializing in the development, research, and production of various oil filtering and purification equipment, including oil filtering machines, vacuum oil filtering machines, and oil filtration purification equipment. Our products are widely used in various industries such as electric power, petroleum and natural gas, mining, machinery manufacturing, steel, metallurgy, chemical, railway, paper making, pharmaceutical, aviation, shipping, and various large enterprises. We offer more than ten series and hundreds of varieties, including the ZJA high-efficiency double-stage vacuum oil filtering machine, ZJB/ZJB-T transformer oil high-efficiency vacuum oil filtering machine, ZJC turbine oil filtering machine, ZJD lubricating oil filtering machine, ZJD-S lubricating oil dehydration filtering machine, ZJD-F coalescence and separation light oil filtering machine, ZJD-R lubricating oil regeneration and acid removal filtering machine, ZJL multi-functional single-stage regeneration oil treatment machine, ZJR multi-functional double-stage regeneration oil filtering machine, YL portable filtering and refueling machine, YL-B overpressure protection portable oil filtering machine, BK pressure plate and frame oil filtering machine, BZ transformer oil regeneration, decolorization, and acid removal device, JYWL series plate closed filtering tank, DIR waste engine oil distillation (lubricating oil) equipment, and NRY internal combustion engine oil filtering machine. These products can meet the filtration needs of various types of lubricating oils in different industries. Additionally, we offer a variety of special configurations for your choice: enclosed oil filtering machine, explosion-proof oil filtering machine, trailer-type oil filtering vehicle, PLC fully automatic oil filtering machine, touch screen controlled oil filtering machine, fully imported configuration filtration and purification machine, etc. We can provide targeted solutions according to the special needs of different customers, providing a strong guarantee for their safe production, energy conservation and consumption reduction, and production cost reduction.Please pay attention to the power supply voltage in the region of use. If it differs, please inform us to customize the power supply voltage- Name（chinese）
